Product Summary

The TDA7088T is an FM receiver circuit. It can be used in (1)Mechanical tuning; this is possible with or without integrating AFC circuit; (2)Electrical tuning; this is realized by one directional (band-up) search tuning facility, including RESET to the lower-band limit.

Parametrics

TDA7088T absolute maximum ratings: (1)supply voltage: 0 to 5 V; (2)storage temperature: -55 to +150 °C; (3)operating ambient temperature: -10 to +70 °C; (4)electrostatic handling: -.

Features

TDA7088T features: (1)Equipped with all stages of a mono receiver from antenna to audio output; (2)Mute circuit; (3)Search tuning with a single varicap diode; (4)Mechanical tuning with integrating AFC; (5)AM application supported; (6)Power supply polarity protection; (7)Power supply voltage down to 1.8 V.

Diagrams

TDA7088T pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

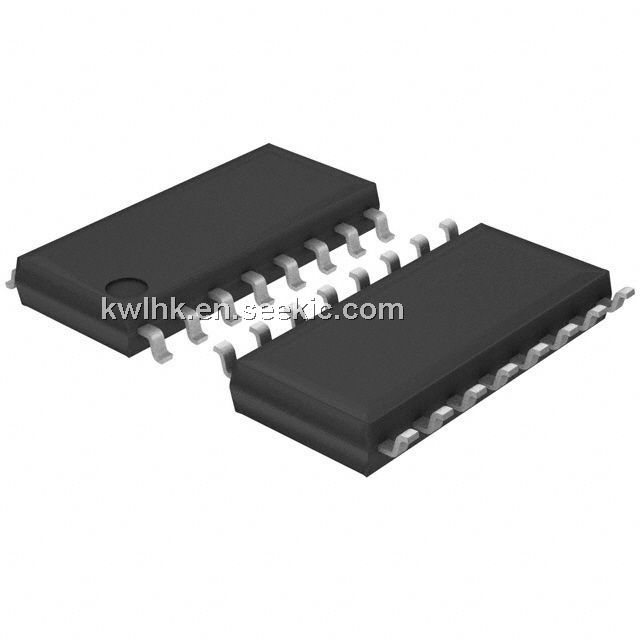

TDA7088T
TDA7088T

Other


Data Sheet

Negotiable
